High-quality Ball Valve Supplier from China

Cryogenic Ball Valves

3 Piece Ball Valves

BV-131DT/B/S - 3 Piece Ball Valve

SPECIFICATIONS
Available Material	CF8M/WCB
Working Pressure	1/4"-2" 1000 PSI 2-1/2"-4" 800 PSI
Ball Bore	Full
End Connection	Threaded / Socket Weld / Butt Weld
Size Range	1/4" to 4 "
ISO Mount	Direct

ADDITIONAL APPLICATION
Operation	Handle/Actuator
Options	SEAT:RTFE/PTFE+50%SS/TFM1600/TFM4215

undefined

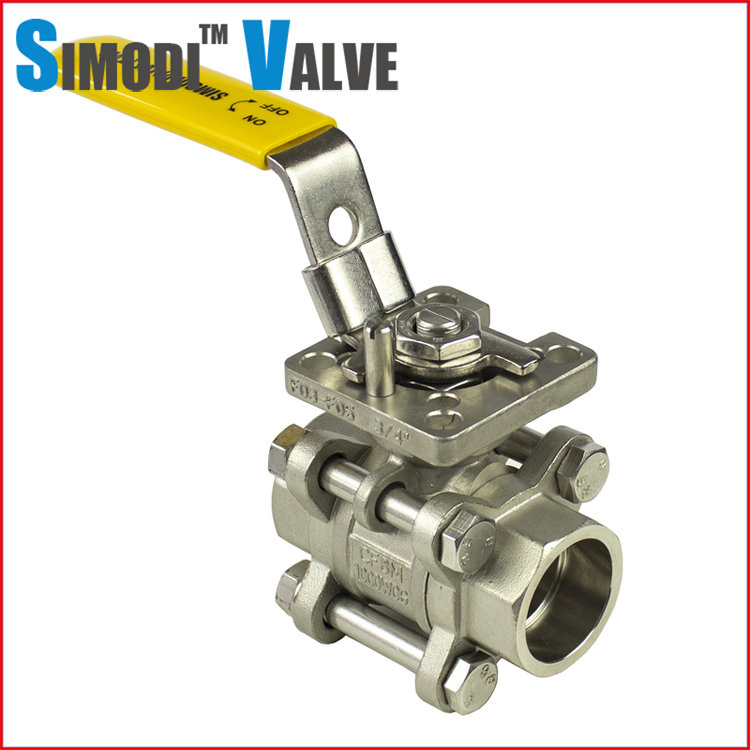

Three-piece high platform ball valve

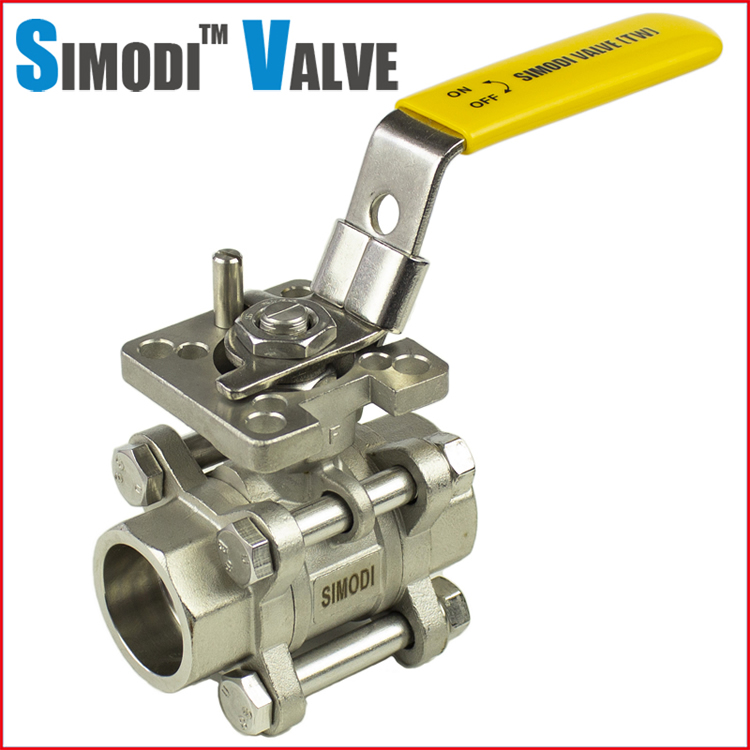

SIMODI Three-piece High Platform Socket Weld Ball Valve

undefined

BVB-131DT/B/S Three-piece high-platform stainless steel ball valve

SPECIFICATIONS
* Working Pressure: 1/4”~2”1000PSI WOG 2-1/2"~4" 800PSI
* Temperature Range: -15℃～150℃(PTFE)
*Blow-Out-Proof Stem Design
*Antistatic Device
*Investment Casting
*Solution Treatment
* ISO5211 Direct-Mounting of Actuators of Valves Design
* End Types: Female Threaded、Butt Welded、Socket Welded

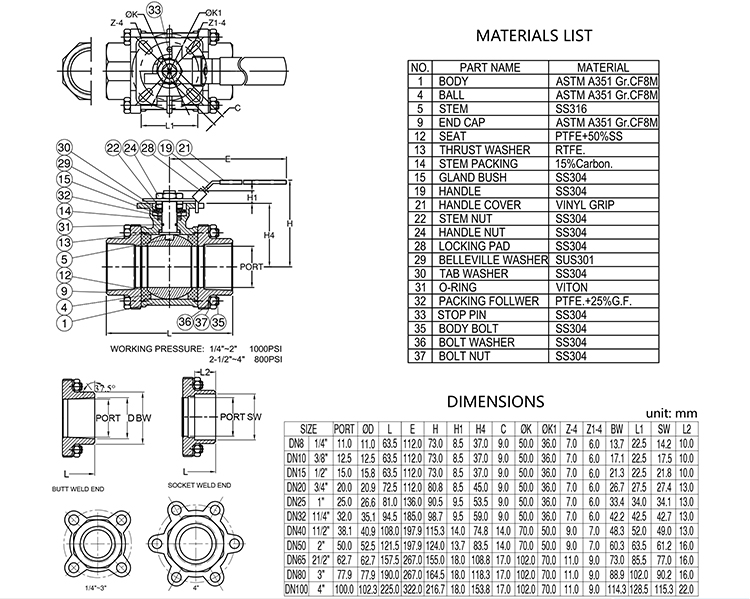

SIMODI ball valve - Drawing files of the three-piece high platform ball valve
